I started this project because I was curious about a sub-field of machine learning which is currently more hyped than quantum computing. Companies spend millions on this technology just because it is so versatile and applicable in our everyday lives. Three words: Large Language Models.
Without having any prior experience in this domain, I saw two things that I was curious about:
- Lately the academic community as well as the industry switched from recurrent neural networks to so called transformer architectures. It seemed to be fairly straightforward to obtain one of these models pre-trained on a large text dataset, and then fine-tune it, such that the model is able to produce text in the same style as your training data (e.g. “write like Shakespeare”). So this is point number one that sparked my interest.
- Second, I saw some opportunities to explore a new topic which was very relevant for my daily work: Cloud services. Cloud services like the ones you get from Amazon Web Services (AWS), Microsoft Azure, or Google Cloud Platform come handy when you want to train and run these language models. In the cloud, it is simple to rent hardware you would never buy privately. I think for the entire project I spent something in the order of 30 €, which is little given the machines that I used. If you just want to play around, I believe that Google Colab or Kaggle Notebooks are your best options - you can use a GPU or TPU for quite some time without charge. My company has recently moved to the AWS ecosystem, so that simplifies the choice for me.
That’s basically why I wanted to come up with a project to bring these things together: Learning a little about the latest fad in machine learning and getting more familiar with state-of-the-art cloud services.
If you are interested in some articles on the topic, these are the ones that inspired me to do this project:
- The Unreasonable Effectiveness of Recurrent Neural Networks
- Deep Drumpf
- Building a lyrics generator with markov chains
- Create your first LSTM
- Fine tuning GPT-2
The recipe
What are the ingredients of this project? Some text data, a language model, and an account in AWS. Playing with the language models was a big part, and here I tried to follow the tracks of history, to see where the current state was coming from:
- The simplest approach to try was a Markov chain model. It’s just 80 lines of code, which you can still implement without fancy packages, plus, you’ll immediately understand what every line is doing.
- Going in big leaps up the evolutionary ladder of models, I wanted to try out long / short term memory recurrent neural networks (LSTM RNNs) - if you check out Create your first LSTM, there are nice links which summarize how RNNs / LSTM RNNs work.
- And finally, there’s the (current) masterclass: transformers. It’s beyond my time constraints to implement a transformer myself, but with Hugging Face’s transformers library it’s only a matter of using the API in the right way.
The second big package was getting set up in the AWS environment. Initially I thought about setting up all environments for training and deployment in docker (well, you know the hype). But I came across two reasons why it might not be a good idea for a simple project like mine, or maybe even your typical data science project:
- First, complexity: Docker adds an additional layer of complexity to the training and deployment process, especially for a project where you have limited time resources and the focus is to build a prototype.
- From my experience, added complexity (in the cloud) goes hand in hand with some overhead, which you should only accept if absolutely necessary. Basically, with my small dataset and me being the only user, ends don’t justify the means.
Let’s go step by step
Preparation and local testing
At the very beginning of this project, I immediately thought of Twitter as a potential source for text data. Wikipedia was another option but Twitter had the appeal to contain more or less unfiltered quotes (so how people actually think and talk). Well, initially I did go the Twitter route but this is maybe a story for a different post since it would make this one unnecessarily long. In this post, I’d rather use a shortcut and focus on more interesting topics: the machine learning- and cloud services part. My shortcut is a dataset of Magic: The Gathering cards, where you can easily extract all the so called “flavor texts”. These are snippets of text which are like quotes from a “Lord of the rings” book. At least to me, that was an interesting dataset, since I started to play MTG on the side at that time. But feel free to replace it with whatever other text corpus you are interested in (maybe Shakespeare or Dostoyevsky?). Doing all of this should be about the fun of it, so if you want to try it for yourself, pick something that makes it fun.
Collecting data from mtgjson.com project
In case you want to follow my tracks, go to mtgjson.com and download the AllPrintings.json from the Downloads section. With a simple Python script you can extract the flavor text snippets and save them to a csv file. Just a quick note: I will try to reduce code snippets to core functionality and leave out boilerplate stuff.
# import [...]
with open(os.path.join(source_folder_string, "AllPrintings.json")) as f:
db = json.load(f)
flavorText_list = []
for s in db["data"].keys():
for c in db["data"][s]["cards"]:
if "flavorText" not in c.keys():
continue
if c["language"] == "English":
text = c["flavorText"]
if "—" in text:
text = text[: text.index("—")]
flavorText_list.append(text)
df = pd.DataFrame(flavorText_list, columns=["Text"])
df.drop_duplicates(subset=["Text"], inplace=True)
df.to_csv(output_path_string)
The simplest model
A Markov chain is one of the simplest approaches to text generation. In simple terms, a Markov chain looks at the current word (or group of letters) and chooses the next word (or group of letters) with a certain probability. The probabilities for the next word in the sequence are calculated from a larger text corpus. Or we say, the model is “fitted” on a training dataset (well, not with gradient descent but you know what I mean).
How it works

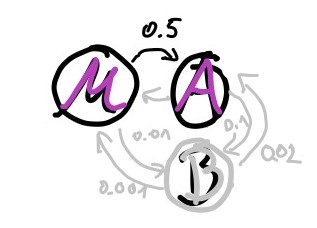

Usually we speak of so called “n-gram” models, where n is the number of words that the model considers to predict the next word. Based on this mechanic, the generated text is very similar in style to the input text. The core functionality can be discussed with the following two functions (taken from Building a lyrics generator with Markov chains)
# import [...]
def generateModel(text, order, model=None):
"""
:param text: A string of text which the model is generated from.
:param order: An integer representing the length of the fragment.
:param model: An optional parameter representing the language model. It is initialized as an empty dictionary {} if not provided.
:return: A language model in the form of a dictionary
"""
if model == None:
model = {}
for i in range(0, len(text) - order):
fragment = text[i:i+order]
next_letter = text[i+order]
if fragment not in model:
model[fragment] = {}
if next_letter not in model[fragment]:
model[fragment][next_letter] = 1
else:
model[fragment][next_letter] += 1
return model
def getNextCharacter(model, fragment):
letters = []
for letter in model[fragment].keys():
for times in range(0, model[fragment][letter]):
letters.append(letter)
return random.choice(letters)
The generateModel function generates a simple language model in the form of a dictionary. In this dictionary, each key is a fragment of text with length equal to order parameter. The key’s value is another dictionary, where the keys are “next letters” observed to follow a given fragment in the text and the values are the number of times those letters appear after the given fragment. The function then scans the text by sliding a window of length order over the text and counts the number of occurrences of “next letters” following each fragment. The resulting dictionary is our first simple “language model”.
Finally, with the getNextCharacter function we can simply provide a stream of fragments, and in a probabilistic way predict the “next letter” for each fragment. To do so, the function looks into the dictionary and pulls out all letters observed to follow a certain text fragment. Then these letters are appended to the list letters as many times as they were observed in the original dataset to follow the respective fragment. From the resulting list we can choose a letter at random and automatically get a good match for our given fragment. Not only has it definitely been observed after the given fragment, but it will also have a good chance of being one of the most frequent letters to follow our fragment.
Markov chain outputs
Here is a selection of sentences generated by the Markov chain model:
- Its low hum reminds me of angelic saviors’ wings. They see its wings. The sky requires it. But it is right to make sure it was right.
- All da bugs here got wings! (I love this one)
- It may now be time for more chaotic violence.
- Dreams are the path.
- We bury our past to soil - until I’ve gnawed their natural magical device.
- Supporting sun and sunny places. How would I kill the sky. (I can only agree with this one - nice!)
Theses examples actually can make sense to a reader, but they are extremely rare: to find them I searched 230 lines of output text.
I’ve seen this Markov chain model perform better on producing song lyrics. I could imagine that lyrics work better because of a more concise “sentence” structure and use of words.
The next evolutionary step: LSTM RNNs
The next models I tried were the long / short term memory recurrent neural networks (LSTM RNNs). These can still be trained locally (and I did for the prototyping) but only if you use a small number of epochs. A thorough training requires more powerful hardware than my laptop. Let’s first look at the core parts of such a recurrent neural network in code.
How it works
As mentioned above, if you check out Create your first LSTM, the article also links to another one which summarize how LSTM RNNs work. All credit (especially for the code) goes to these authors. But I will do my best to give my own brief description here.

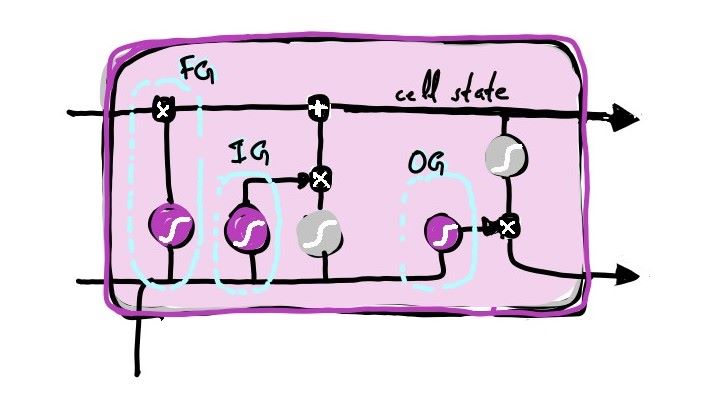

A recurrent neural network is a network that can be used to generate a series of outputs, where each new output is influenced by the preceding inputs. They have an internal “state” which keeps changing with the sequence of inputs and acts just like a short-term memory. However, there is an issue with longer sequences: The internal state is not able to recall what happened at the beginning of a long sequence due to the well-known vanishing gradient problem. This is where Long Short-Term Memory RNNs come into play. These were specifically designed to handle long-term dependencies. In an LSTM RNN, there is a simple RNN cell, a dedicated long-term memory cell, and three gates: an input gate, a forget gate, and an output gate. These control the flow of information into and out of each “memory” cell.
The forget gate determines how much of the previous hidden state should be retained. The input gate determines whether the memory cell is updated and how much new information should be added to the memory cell state. A new cell state is created based on the output of the input and forget gates. Finally, the output gate determines what the next hidden state should be from the newly calculated memory cell state, the previous hidden state, and the input data. The outputs from the LSTMs at each time step are typically fed into a final (dense) output layer that produces the final prediction.
Here’s the code that gives you the architecture of the network (adapted from this article):
def compileModel(vocabulary, batch_size):
### Building the model
vocab_size = len(vocabulary) # Length of the vocabulary in chars
# The embedding dimension
embedding_dim = 256
# Number of RNN units
rnn_units = 512
model = tf.keras.models.Sequential()
model.add(
tf.keras.layers.Embedding(
vocab_size, embedding_dim, batch_input_shape=[batch_size, None]
)
)
model.add(
tf.keras.layers.LSTM(
rnn_units,
return_sequences=True,
stateful=True
)
)
model.add(
tf.keras.layers.LSTM(
rnn_units,
return_sequences=True,
stateful=True
)
)
# Final Dense Layer to Predict
model.add(tf.keras.layers.Dense(vocab_size))
# The standard tf.keras.losses.sparse_categorical_crossentropy loss function works in this case because it is applied across the last dimension of the predictions.
loss = tf.losses.SparseCategoricalCrossentropy(
from_logits=True
) # Because your model returns logits, you need to set the from_logits flag.
print(model.summary())
model.compile(optimizer="rmsprop", loss=loss)
return model
Above function will yield the following architecture:
Model: "sequential"
_________________________________________________________________
Layer (type) Output Shape Param #
=================================================================
embedding (Embedding) (1, None, 256) 23040
lstm (LSTM) (1, None, 512) 1574912
lstm_1 (LSTM) (1, None, 512) 2099200
dense (Dense) (1, None, 90) 46170
=================================================================
Total params: 3,743,322
Trainable params: 3,743,322
Non-trainable params: 0
Additionally I used these two functions for text pre- and post-processing (adapted from here):
def preprocess_text(t):
t = t.lower()
# seperate the punchuations from the words
punct = [".", "[", "]", "(", ")", ";", ":", "'", "/", '"', ", ", "?", "*", "!", "-", "$", "%", "&", "\n"
]
for i in punct:
t = t.replace(i, " " + i + " ")
t = t.replace("\n", "<NEWLINE>")
t = t.replace("\t", "<NEWTAB>")
return t
def post_process_text(t):
punct1 = [".", ":", "!", ";", ")", "]", "?", ",", "%"]
for i in punct1:
t = t.replace(" " + i, i)
punct2 = ["[", "(", "$"]
for i in punct2:
t = t.replace(i + " ", i)
punct3 = ["-", "'", '"']
for i in punct3:
t = t.replace(" " + i + " ", i)
t = t.replace("<NEWLINE>", "\n")
return t
Switch to the cloud environment
To prevent this article from growing too big, I have moved the whole part of setting up the AWS environment to this post. There you’ll find details on things like creating the necessary IAM roles, moving your data to EBS volumes, or creating templates to launch your training jobs. But let’s talk about more interesting stuff.
LSTM RNN outputs
The LSTM produces sentences such as:
- No shadow remains for you.
- These last of the past must find their way into death.
- the people of the seventheur of the eldrazi-four suns trained to strike and return.
- The Conch will kill those whom once they loved.
- When the spirit is just the best answers will endure.
Sentences like these were equally rare as in the Markov chain model but with some tweaking of the temperature parameter (which you will have in the text generation function) you can achieve slightly better results. However, even with fine tuning the results are far from where I thought you would get with RNNs, so I’m wondering whether something in my pipeline could still be improved. On the other hand, when looking closely at all the examples that come up in blogs and tutorials, the quality of text that is produced is really not that different.
A side note: It’s always useful to visualize the training process. You can do that by installing gnuplot on the EC2 instance, and make a rough plot directly in the console:
gnuplot> set datafile separator ","; set terminal dumb; plot "train.log" using 1:2 title 'Training Loss'`
3.5 ++-----+------+------+------+------+-----+------+------+------+-----++
+ + + + + + + Training Loss + A +
A |
3 ++ ++
| |
2.5 ++ ++
A |
| |
2 +A ++
|AA |
| AA |
1.5 ++ AAA ++
| AAAAA |
| AAAAAAAAAA |
1 ++ AAAAAAAAAA ++
| AAAAAAAAAA |
0.5 ++ AAAAAAAAAAAAAAAA ++
| AAAAAAAAAAAAAAAAAA
+ + + + + + + + + + +
0 ++-----+------+------+------+------+-----+------+------+------+-----++
0 20 40 60 80 100 120 140 160 180 200
[TODO] Try bidirectional LSTM layers. What bidirectional layers are is explained here, but in brief, they allow the network to not only process a sequence from start to end but also backwards. This gives the model more awareness of the “entire” context around a word (i.e. considering words before and after a certain word), where a regular LSTM would ignore everything that follows a given word.
To make them work, you need to implement a preprocessing step called “tokenization” - so you’re not generating text on the character-level with bidirectional LSTMs, but on the word-level.
Transformers
While LSTMs have been very successful in processing sequential data, they were computationally expensive and still struggled with very long sequences. In 2017, a radically new type of neural network was introduced: the transformer. Since then, they have become increasingly popular for language processing tasks. Unlike LSTMs, which process sequential data one step at a time, transformers can process entire sequences of inputs in parallel. They do this by using self-attention mechanisms to learn contextual relationships between all of the inputs in the sequence. This allows transformers to capture long-range dependencies more efficiently than LSTMs and it has made them particularly effective for tasks such as language translation and language modeling.
How it works
For this project I used GPT-2, which stands for “Generative Pre-trained Transformer 2”. So how do these Cybertron things actually work? In regular sequence to sequence models, you have one Encoder which takes in and processes the input sequence of words, and one Decoder which uses the hidden state (–> RNNs) of the encoder to produce an output sequence. A Transformer has not one of each but a stack of several encoders as well as several decoders. The last encoder of the stack passes it’s output to each of the decoders. Each encoder is composed of a Self-Attention layer and a feedforward Neural Network. Self-attention is a mechanism, which allows the encoder to embed information about surrounding, and presumably relevant words, into the vector representation of each word it processes.
The decoder is very similar to the encoder, but between self-attention and feedforward neural network, there is an Encoder-Decoder Attention layer. This allows the decoder to pay attention only to certain parts of the input sequence while generating a new word. Another difference to the encoders is that the attention mechanism is only allowed to look at earlier positions in the sequence (which in practice is accomplished by masking the internal matrices). I won’t get into other interesting details here (e.g. the multi-headed attention), but a great explainer can be found in Jay Alammar’s blog.
Regarding the code for this model, I followed this article. The core component is this:
def fitModel(
model,
dataset,
tokenizer,
batch_size=16,
epochs=5,
lr=2e-5,
max_seq_len=400,
warmup_steps=200,
gpt2_type="gpt2",
output_dir=".",
output_prefix="chkp",
test_mode=False,
save_model_on_epoch=True,
log_file="",
):
acc_steps = 100
device = torch.device("cuda")
model = model.cuda()
model.train()
optimizer = torch.optim.AdamW(model.parameters(), lr=lr)
scheduler = get_linear_schedule_with_warmup(
optimizer, num_warmup_steps=warmup_steps, num_training_steps=-1
)
train_dataloader = DataLoader(dataset, batch_size=1, shuffle=True)
loss = 0
accumulating_batch_count = 0
input_tensor = None
for epoch in range(epochs):
print(f"Training epoch {epoch}")
print(loss)
if epoch > 0:
with open(log_file, "a") as file_object:
file_object.write(f"{epoch},{loss.item()}\n")
for idx, entry in tqdm(enumerate(train_dataloader)):
(input_tensor, carry_on, remainder) = pack_tensor(entry, input_tensor, 768)
if carry_on and idx != len(train_dataloader) - 1:
continue
input_tensor = input_tensor.to(device)
outputs = model(input_tensor, labels=input_tensor)
loss = outputs[0]
loss.backward()
if (accumulating_batch_count % batch_size) == 0:
optimizer.step()
scheduler.step()
optimizer.zero_grad()
model.zero_grad()
accumulating_batch_count += 1
input_tensor = None
if save_model_on_epoch:
if epoch % 10 == 0:
torch.save(
model.state_dict(),
os.path.join(output_dir, f"{output_prefix}-{epoch}.pt"),
)
return model
def generate_text(
model,
tokenizer,
prompt,
entry_count=10,
entry_length=30, # maximum number of words
top_p=0.8,
temperature=1.0,
):
model.eval()
generated_num = 0
generated_list = []
filter_value = -float("Inf")
with torch.no_grad():
for entry_idx in trange(entry_count):
entry_finished = False
generated = torch.tensor(tokenizer.encode(prompt)).unsqueeze(0)
if generated.size(dim=1) == 0:
continue
for i in range(entry_length):
outputs = model(generated, labels=generated)
loss, logits = outputs[:2]
logits = logits[:, -1, :] / (temperature if temperature > 0 else 1.0)
sorted_logits, sorted_indices = torch.sort(logits, descending=True)
cumulative_probs = torch.cumsum(
F.softmax(sorted_logits, dim=-1), dim=-1
)
sorted_indices_to_remove = cumulative_probs > top_p
sorted_indices_to_remove[..., 1:] = sorted_indices_to_remove[
..., :-1
].clone()
sorted_indices_to_remove[..., 0] = 0
indices_to_remove = sorted_indices[sorted_indices_to_remove]
logits[:, indices_to_remove] = filter_value
next_token = torch.multinomial(F.softmax(logits, dim=-1), num_samples=1)
generated = torch.cat((generated, next_token), dim=1)
if next_token in tokenizer.encode("<|endoftext|>"):
entry_finished = True
if entry_finished:
generated_num = generated_num + 1
output_list = list(generated.squeeze().numpy())
output_text = tokenizer.decode(output_list)
generated_list.append(output_text)
break
if not entry_finished:
output_list = list(generated.squeeze().numpy())
output_text = f"{tokenizer.decode(output_list)}<|endoftext|>"
generated_list.append(output_text)
return " ".join(generated_list)
model = GPT2LMHeadModel.from_pretrained("gpt2")
model = fitModel(
model,
dataset,
tokenizer,
epochs=args.epochs,
lr=2e-5,
log_file=logFile,
output_dir=chkpFolder,
)
torch.save(model, os.path.join(chkpFolder, "model.pt"))
generated_text = []
labels_to_delete = []
for i in range(len(test_set)):
txt = generate_text(
model.to("cpu"), tokenizer, test_set["Text"].iat[i], entry_count=1
)
if len(txt) > 31:
generated_text.append(txt)
else:
labels_to_delete.append(test_set.index[i])
Transformer outputs
Here is a selection of sentences generated by the Markov chain model:
- Two glowing red eyes and the rustling of the stones means that some people believe that they are the guardian spirits of the forest.
- You steal it, I find it. You then buy it back again, and I’m back here in hell.
- The one you see is just a diversion. There is no way around it.
- When you hit it, you break it. The trick is to drive it away from you.
- The mycosynth created the first aliens.
GPT2 produces a much better quality than the previous approaches (well, that was expected). You still have to cherry-pick good sentences, but they occur more often.
I still have a couple of TODO’s for this post, but for now, I’ll leave it at that. I hope that some of my learnings are useful to one or the other visitor - and if it’s only for a collection of links to other nice articles. So far, stay curious and keep learning!
